A pioneering spectrometer for hard X-rays at European XFEL
"The new spectrometer opens up completely new spectroscopic possibilities at high X-ray energies"
Researchers at the European XFEL have developed a new device for X-ray measurements at high photon energies–a so-called Laue spectrometer. It enables X-ray light with photon energies of over 15 kiloelectronvolts to be detected with improved efficiency and highest precision. This is important for researching technically significant materials that, for example, transport electricity without losses or ensure that chemical processes run more efficiently.

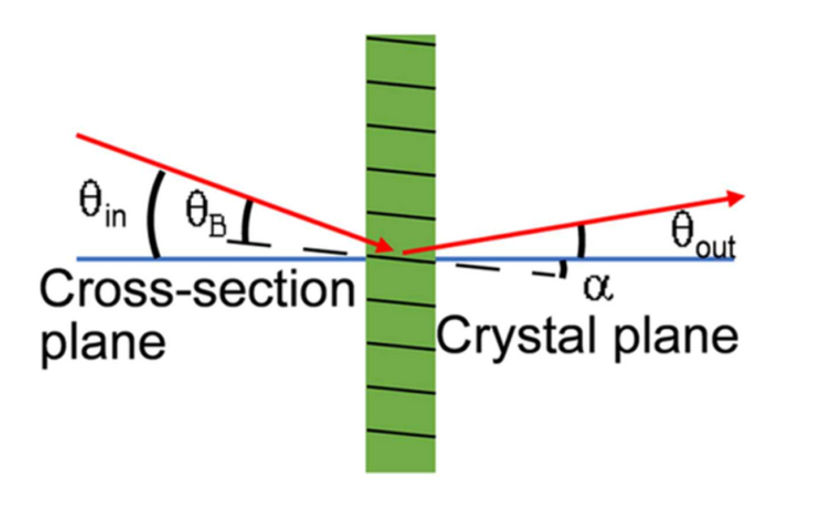

Contrary to regular spectrometer the new Laue spectrometer is diffracting the X-ray beams (red arrows) by atomic layers perpendicular to the surface.
© European XFEL
To unravel the secrets of the world of atoms, molecules and materials in general, scientists often use special measurement devices known as spectrometers. They work by recording the light that objects emit. From the way in which the objects do that, researchers learn a lot about the physical processes that take place in the materials. Particularly revealing is the research with X-ray light, which penetrates deeply in matter and provides information specific to each atomic species. This light is invisible to our eyes, but can be detected and measured using special spectrometers.
The main components of these devices are usually extremely precisely cut crystals made of silicon or germanium. Traditionally, the X-ray spectrometers work in what is known as Bragg geometry: The X-ray light hits the crystal and is then diffracted by the atomic planes parallel to the surface similarly as mirrors reflect visible light. From the direction and intensity of the scattered radiation, the researchers can draw conclusions about the electronic properties of the materials they are analysing.
A unique characteristic of European XFEL is the ability to provide X-ray light with very high energy. However, as the energy of the X-rays increases, the interaction with the crystals becomes smaller, making the measurements challenging. In this high photon energy regime, a large proportion of the X-ray light simply passes through the crystal unused, which is why the performance of X-ray spectrometers using these analysers, known as Johann or Von Hamos spectrometers, decreases rapidly with increasing X-ray energy. They usually only work well up to a photon energy of around 15 kiloelectronvolts (keV).
Researchers at the FXE instrument at European XFEL have now developed a new spectrometer to obtain meaningful results even at energies well above 15 keV. It works in the so-called Laue geometry. This means that the X-rays pass through the crystal and are diffracted by atomic layers perpendicular to the surface. The higher the X-ray energy, the more efficiently the Laue analyser works. “Our optimised design with a fixed curvature and a short bending radius results in analysers without noticeable surface distortions, which considerably simplifies the setup and measurement with the Laue spectrometer,” says Frederico Lima, scientist at the FXE instrument. The performance of this spectrometer greatly surpasses previous designs with dynamically curved Laue analysers.

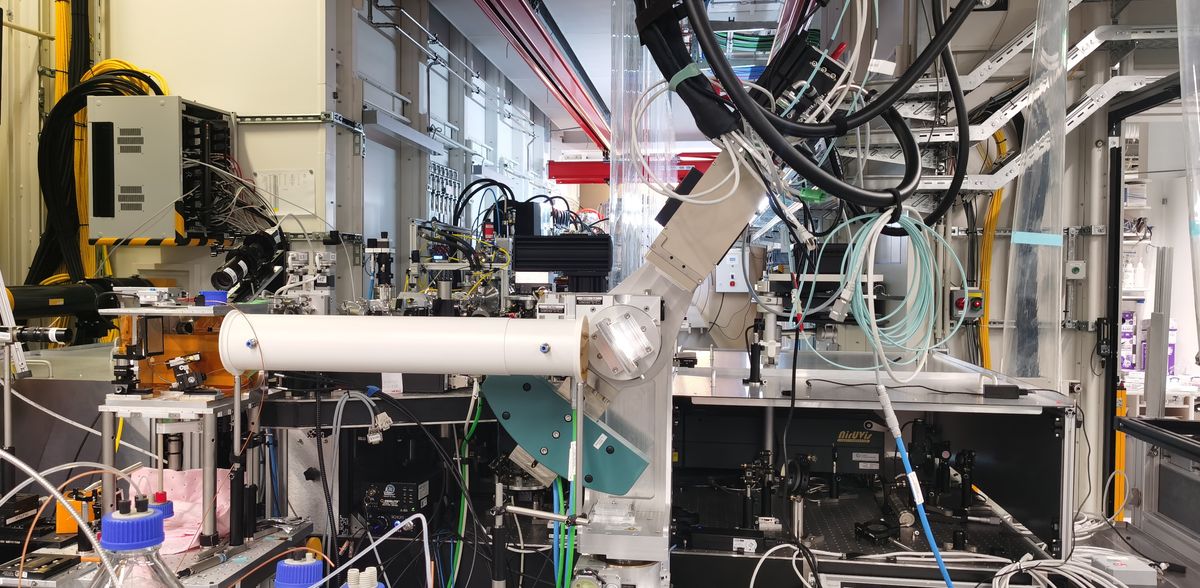

The newly developed device called High Energy Laue X-ray Emission Spectrometer (HELIOS) is now installed and available to all users at European XFEL. It provides an extremely high precision of about 1.2 x 10-4 at a photon energy of around 18.6 keV. Compared to conventional spectrometers, it achieves a signal strength that is 4 to 22 times higher. This makes it possible to detect particularly interesting electronic transitions in so-called 4d transition metals, which are otherwise very difficult to measure. The 4d transition metals include technically important elements such as niobium, molybdenum, ruthenium, palladium and silver.
“The new spectrometer opens up completely new spectroscopic possibilities at high X-ray energies, only possible at the European XFEL,” Lima says. Examples include the measurement of photocatalytic properties of nanoparticles containing 4d metals, research into dye sensitisation for solar cell applications, and the investigation of strongly correlated materials that could be used as superconductors or as battery cathodes or anodes for efficient energy storage.
Original publication
X. Huang, Y. Uemura, F. Ardana-Lamas, P. Frankenberger, M. Knoll, H. Yousef, H. Wang, S. Heder, M. Nachtegaal, G. Smolentsev, L. Wang, L. F. Zhu, C. Milne, F.A. Lima; "A high-energy Laue X-ray emission spectrometer at the FXE instrument at the European XFEL"; Journal of Synchrotron Radiation, Volume 32, 2025-3-31
Other news from the department science
These products might interest you
NEX CG II by Applied Rigaku Technologies
Elemental analysis at ppb level for exact results
NANOPHOX CS by Sympatec
Particle size analysis in the nano range: Analyzing high concentrations with ease
Reliable results without time-consuming sample preparation
Micro-Z ULS by Rigaku
Accurately measure sulphur content in fuels: WDXRF analyser
Reliable routine analyses with 0.3 ppm detection limit and compact design
ERASPEC by eralytics
Spectral Fuel Analysis in Seconds with ERASPEC
Fast delivery of over 40 fuel parameters at the push of a button
ALPHA II by Bruker
Chemical analysis made easy: compact FT-IR system
Increase the efficiency of your routine analyses with user-friendly technology
INVENIO by Bruker
FT-IR spectrometer of the future: INVENIO
Freely upgradeable and configurable FT-IR spectrometer
Microspectrometer by Hamamatsu Photonics
Ultra-compact microspectrometer for versatile applications
Precise Raman, UV/VIS and NIR measurements in portable devices
SPECORD PLUS by Analytik Jena
SPECORD PLUS Series - Maximum precision in UV/Vis
The modern classic guarantees the highest quality
contrAA 800 by Analytik Jena
contrAA 800 Series – Atomic Absorption. Redefined
The best of classical atomic absorption and ICP-OES spectrometry are combined in the contrAA 800
ZEEnit by Analytik Jena
Zeeman Technology for Maximum Sensitivity – Matching any Analytical Problem
Transverse-heated graphite furnace for optimum atomization conditions and high sample throughput
S2 PICOFOX by Bruker
Fast and precise trace element analysis on the move
TXRF technology for minimal samples and maximum efficiency
S4 T-STAR by Bruker
TXRF spectrometer: Sub-ppb detection limits & 24/7 analytics
Minimal operating costs because no gases, media or lab equipment are required
ZSX Primus IVi by Rigaku
High-precision WDXRF analysis for industrial applications
Maximum sensitivity and throughput for light elements and complex samples
PlasmaQuant MS Elite by Analytik Jena
LC-ICP-MS Is the Key to the World of Elemental Species
Highest Sensitivity and Lowest Detection Limits with PlasmaQuant MS Series and PQ LC
novAA® 800 by Analytik Jena
The Analyzer 4 You - novAA 800-Series
The reliable all-rounder, making routine analysis efficient and cost-effective
Biacore catalogue by Cytiva
Get started with Surface Plasmon Resonance interaction analysis - which system is right for you?
Discover simpler and faster Surface Plasmon Resonance (SPR) with Biacore systems
BIOS ANALYTIQUE - Soluciones de Renting y Leasing para laboratorios by Bios Analytique
Specialists in the rental and leasing of scientific equipment for laboratories throughout Europe
Whether you have an unexpected requirement or limited budget, we have the perfect solution for you
SPECTRO ARCOS by SPECTRO Analytical Instruments
The inductively coupled plasma optical emission spectrometer (ICP-OES) for highest demands
The top-of-line SPECTRO ARCOS ICP-OES analyzer evolves elemental analysis to the next level
Quantaurus-QY by Hamamatsu Photonics
High-speed UV/NIR photoluminescence spectrometer
Precise quantum yield measurements in milliseconds without reference standards
Agera by HunterLab Europe
Save Valuable Time: Color and Gloss Measurement in Record Time
Capture the Color Impression of the Sample Exactly as the Human Eye Perceives It
Most read news
More news from our other portals
See the theme worlds for related content
Topic World Spectroscopy
Investigation with spectroscopy gives us unique insights into the composition and structure of materials. From UV-Vis spectroscopy to infrared and Raman spectroscopy to fluorescence and atomic absorption spectroscopy, spectroscopy offers us a wide range of analytical techniques to precisely characterize substances. Immerse yourself in the fascinating world of spectroscopy!
Topic World Spectroscopy
Investigation with spectroscopy gives us unique insights into the composition and structure of materials. From UV-Vis spectroscopy to infrared and Raman spectroscopy to fluorescence and atomic absorption spectroscopy, spectroscopy offers us a wide range of analytical techniques to precisely characterize substances. Immerse yourself in the fascinating world of spectroscopy!
Last viewed contents
Observing the ultrafast electrical charging of liquids - Results extend applicability to diverse systems, from biological membranes to next-generation energy storage devices

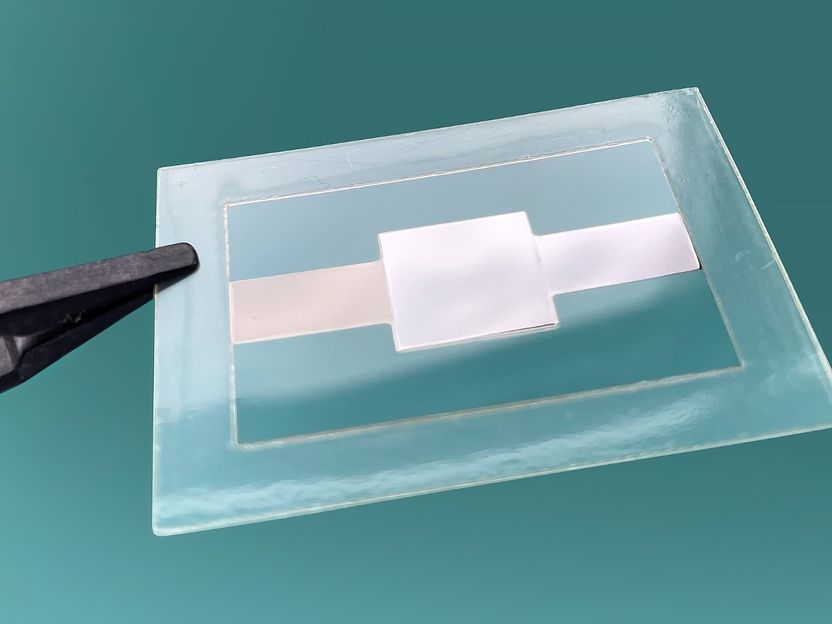

Battery research: visualisation of aging processes operando - ‘A lot happens at the interfaces between the anode, separator and cathode while a battery is charging or discharging’
Understanding carbon traps - Physical probing of a promising material shows exactly how it locks CO₂ into place

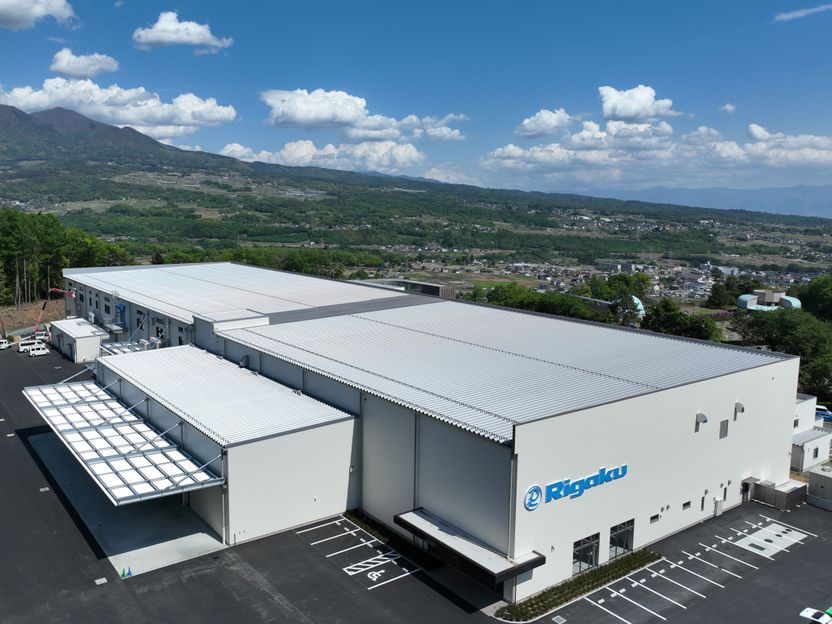

Rigaku Completes New Building at Yamanashi Plant - Dramatic 2.7-fold increase in floor space to serve global demand
How chemical bonds are formed: Observing energy flow in real time - Femtosecond spectroscopy makes chemical processes visible

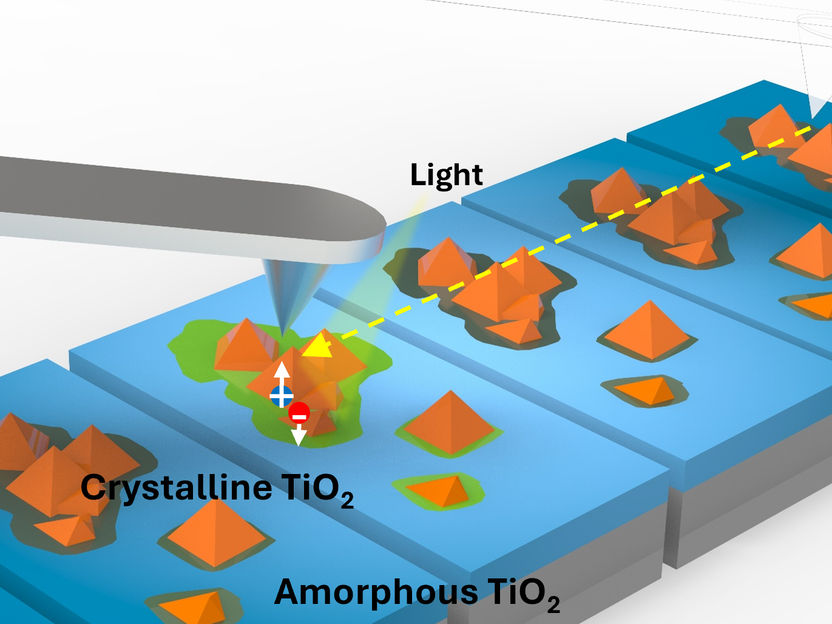

New Microscopy tool for energy research - Technique allows scientists to explore the properties of photoelectrodes more precisely

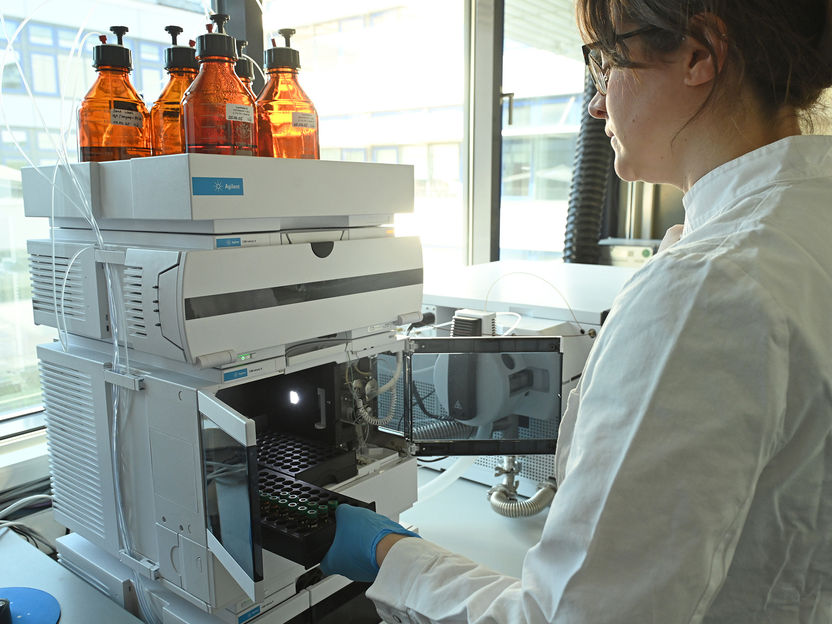

Unmasking hazardous compounds in cosmetics, skincare products and perfumes - New analytical methodology: Significant detection of hazardous compounds and their effects on cells
